Overview

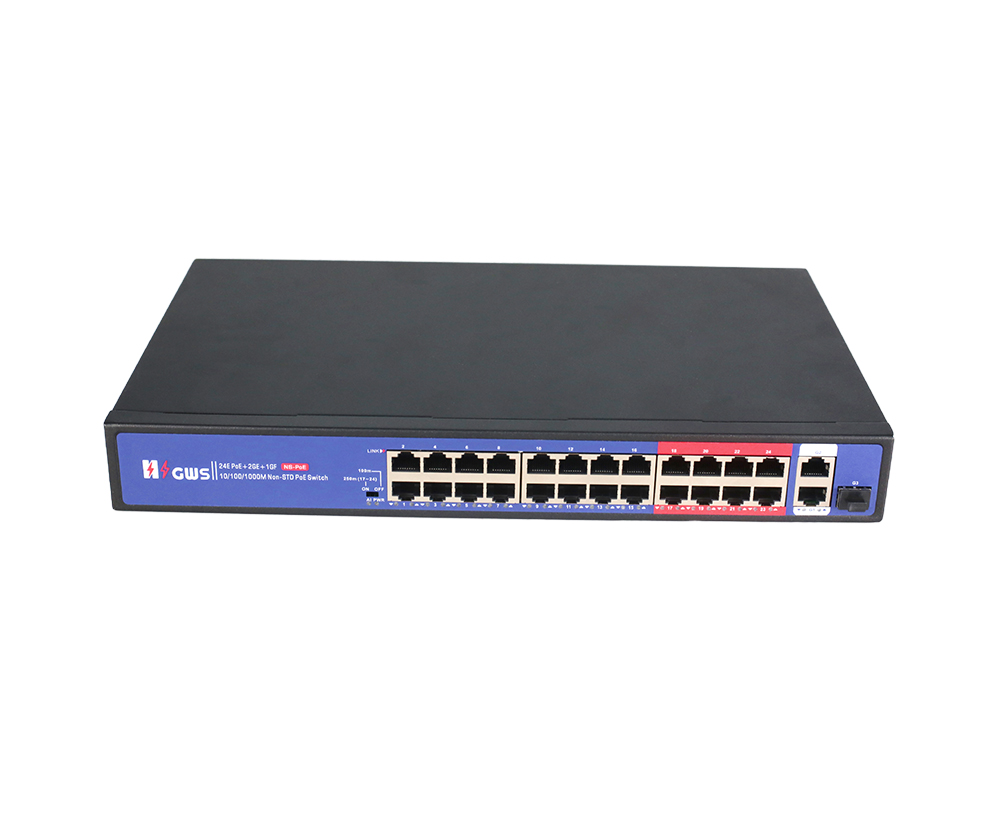

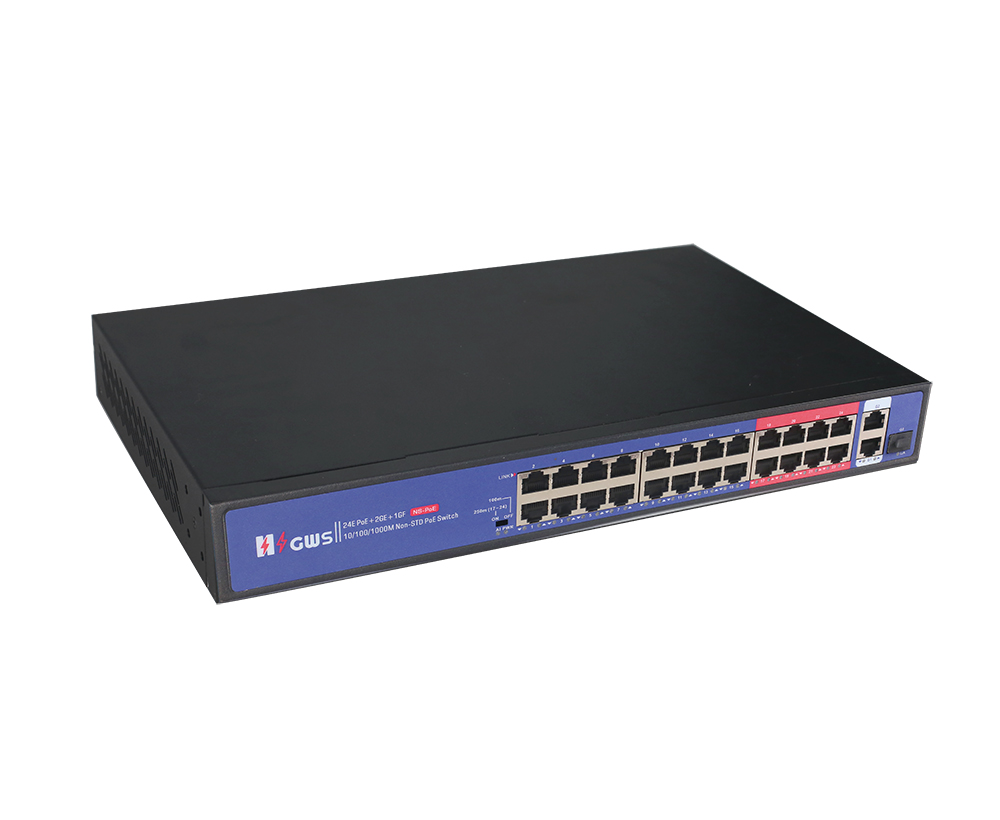

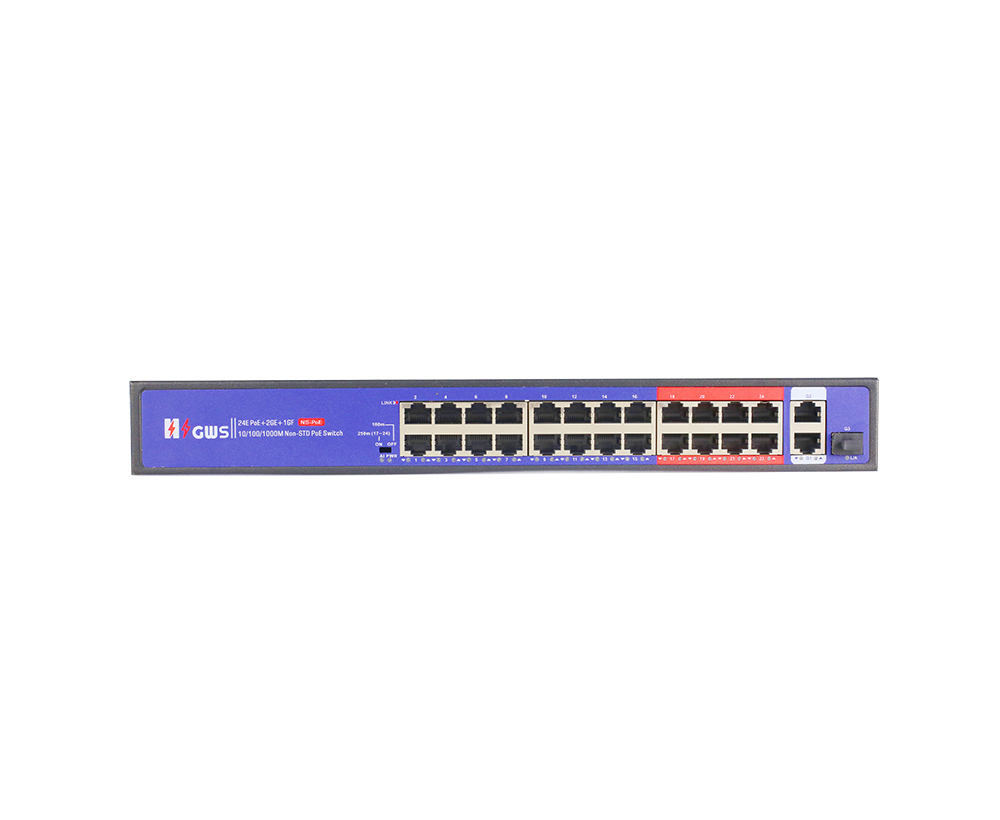

The GWS-2024PFS is an unmanaged PoE switch independently developed by HZGWS. It has 24*10/100M Base-T PoE ports, 2*10/100/1000M Base-T uplink RJ45 ports and 1*1000M Base-X uplink SFP ports. Port 1-24 can support 24V non-standard PoE power supply. Single-port PoE power up to 24W. As a non-standard PoE power supply device, it must be connected to the corresponding non-standard electrical equipment (such as wireless bridge and Video Door Phone), or the corresponding non-standard separation line to convert, and then achieve the PoE power supply. It can supply power to various adaptable terminals through network cables to meet the demand for high density PoE power supply network environment. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises to establish cost-effective networks.Unmanaged mode, plug and play, no configuration, easy to use.
Feature
100M access, Gigabit optical ports uplink
◇ Support non-blocking wire-speed forwarding for smoother transmission.
◇ Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.
◇ Provide Ethernet ports and Gigabit SFP ports uplink for flexible networking and meets the networking requirements of various scenarios.
Intelligent PoE power supply
◇ 24*10/100Base-TX RJ45 ports support 24V PoE power to meet the needs of PoE power in various scenarios in the security field, Single-port PoE power up to 24W.

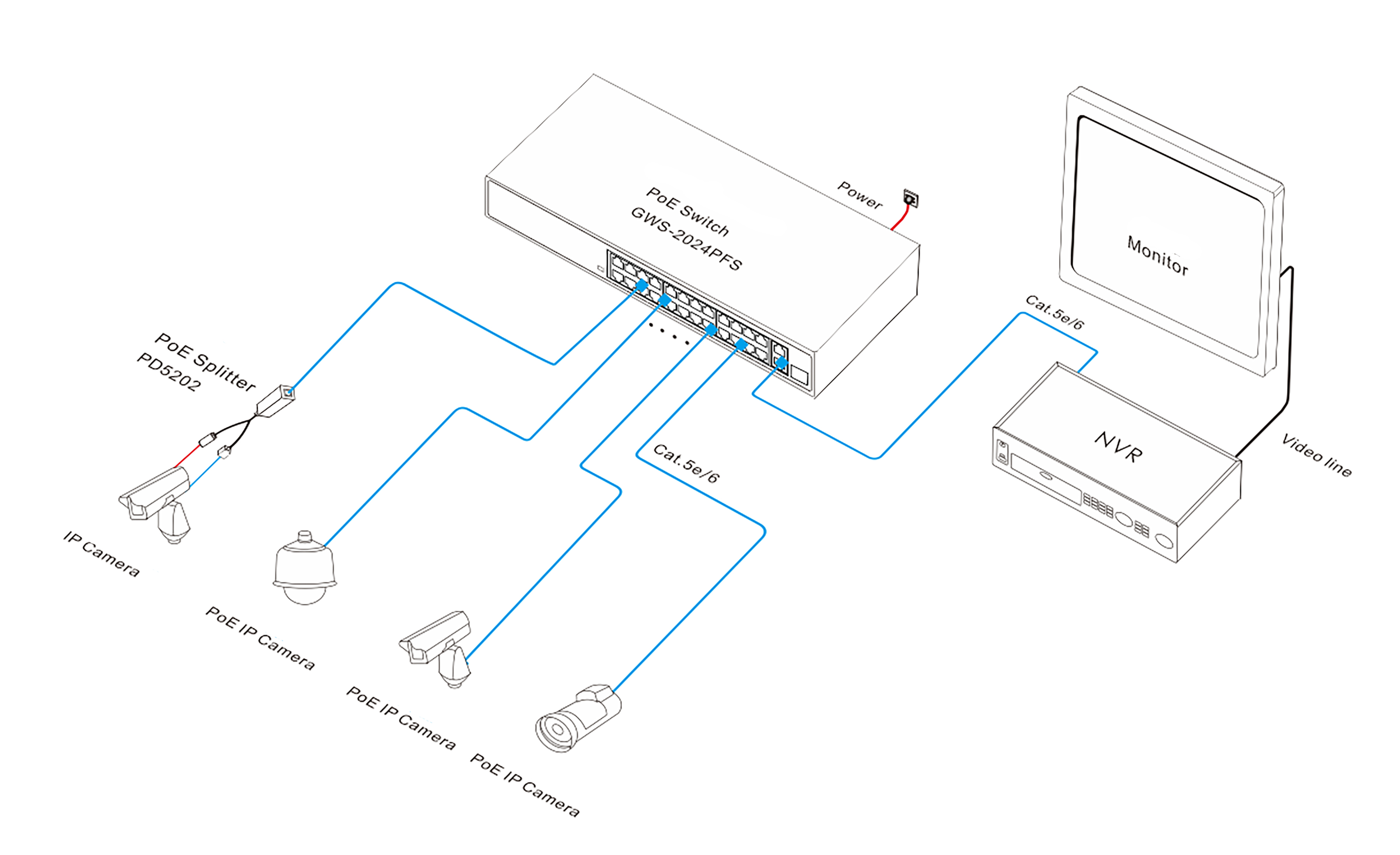

◇ It can quickly realize the power supply function of POE cable through the two ways of switching directly to non-standard electrical equipment or switch and non-standard separation line.
Stable and reliable,
◇ CCC,CE, FCC, RoHS.
◇ Low power consumption, galvanized steel casing, no fan.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
easy to use
◇ Plug and play, no configuration, simple and convenient.
◇Long-distance mode (E): switch to "ON" position (default "OFF"), the port 17 to 24 rate is 10M, Using the existing twisted pair can break through the 100 meters transmission limit, and the transmission distance can be up to 250 meters. At the same time, it can solve the problem of poor transmission caused by aging lines.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, PoE.
Dimension
Ordering Information
|
Model |
Description |
Power Supply |
|
GWS-2016PFS |
Unmanaged PoE switch with 16*10/100M PoE ports, 2*10/100/1000M Base-T uplink RJ45 ports and 1*1000Base-X uplink SFP ports,non-standard PoE switch, port 1-16 can support 24V non-standard PoE+. Adjust the functional switch, can realize 9-16 ports 10M/250 meters extend transmission. Built-in power supply. |
24V/180W |
|
GWS-2024PFS |
Unmanaged PoE switch with 24*10/100M PoE ports, 2*10/100/1000M Base-T uplink RJ45 ports and 1*1000Base-X uplink SFP ports,non-standard PoE switch, port 1-24 can support 24V non-standard PoE+. Adjust the functional switch, can realize 17-24 ports 10M/250 meters extend transmission. Built-in power supply. |
24V/280W |
Packing List
|
Packing List |
CONTENT |
QTY |
UNIT |
|
27-port Gigabit Uplink Non-standard PoE Switch |
1 |
SET |
|
|
AC Power Line |
1 |
PC |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
Technical Specification
|
Model |
GWS-2016PFS |
GWS-2024PFS |
|
Interface Characteristics |
||
|
Fixed Port |
16*10/100Base-T PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) 1*1000Base-X uplink SFP ports (Data) |
24*10/100Base-T PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) 1*1000Base-X uplink SFP ports (Data) |
|
Ethernet Port |
Port 1-16/1-24 can support 10/100Base-T(X) and 17-18/25-26 can support 100/1000Base-T(X) automatic detection, full/half-duplex MDI/MDI-X auto-sensing |
|
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤250 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
|
Optical Fiber Port |
Gigabit optical fiber port, default no include optical module(optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC/SC) |
|
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km |
|
|
Functional Switch |
E: long-distance function (Default: OFF, Use:ON), After opening, ports 9-16/17-24 support 10M/250m long distance |
|
|
Chip Parameter |
||
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T,IEEE802.3z 1000Base-X,IEEE802.3x |
|
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
|
Switching Capacity |
9.2Gbps (Non-blocking) |
10.8Gbps (Non-blocking) |
|
Forwarding Rate@64byte |
6.84Mpps |
8.04Mpps |
|
MAC |
2K |
2K |
|
Buffer Memory |
2.75M |
|
|
Jumbo Frame |
9.2K |
|
|
LED Indicator |
Power: PWR (Green), Network: Link (Green), PoE: PoE (Red), Functional switch: EXTEND (Green) |
|
|
PoE & Power Supply |
||
|
PoE Port |
Port 1 to 16 support 24V POE+ power supply |
Port 1 to 24 support 24V POE+ power supply |
|
Power Supply Pin |
4/5(+) 7/8(-) |
|
|
Max Power Per Port |
24W, non-standard PoE+ |
|
|
Total PWR / Input Voltage |
180W/ (AC100-240V) |
280W/ (AC100-240V) |
|
Power Consumption |
Standby <5W, Full load <180W |
Standby <8W, Full load <250W |
|
Power Supply |
Built-in power supply, AC100~240V 50-60Hz 2.2A |
Built-in power supply, AC100~240V 50-60Hz 4.1A |
|
Physical Parameter |
||
|
Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
|
Storage TEMP / Humidity |
-40~+80°C, 5%~95% RH Non condensing |
|
|
Dimension (L*W*H) |
350*215*44mm |
350*215*44mm |
|
Net /Gross Weight |
<2.3kg / <2.8kg |
<2.5kg / <3.0kg |
|
Installation |
Desktop, Rack-mounted |
|
|
Certification & Warranty |
||
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
|
Warranty |
1 year, lifelong maintenance. |
|
